Introduction

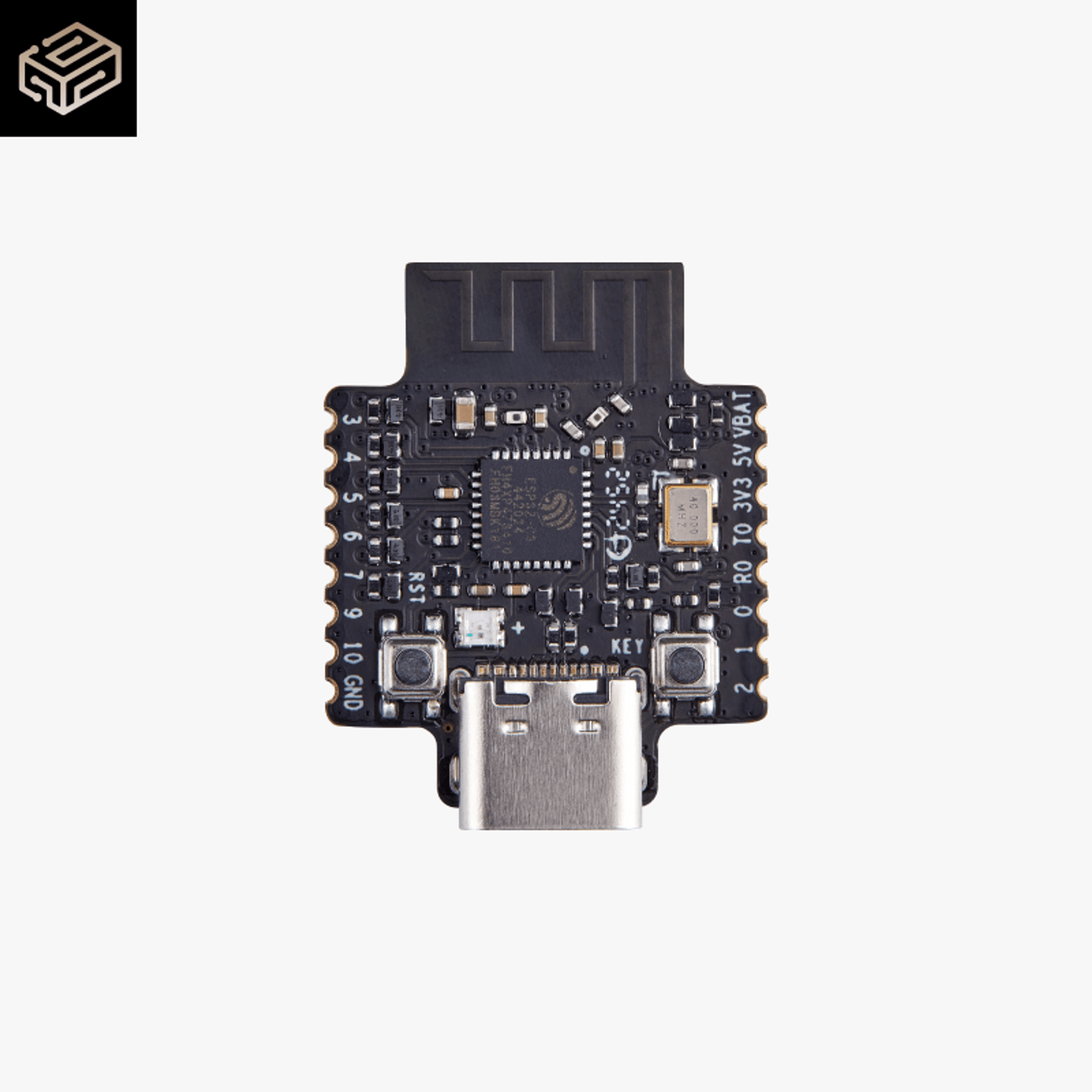

The Multi-Function Controller Core is designed for various CyberBrick projects, featuring built-in Bluetooth and WiFi connectivity. It can be quickly connected and disconnected via dual-pin headers, allowing easy switching between different expansion boards. The Core works with the Receiver Shield and the Transmitter Shield to create a basic remote control system, and it can also pair with the Time-lapse Trigger Shield to capture customized time-lapse videos.
Product Specifications
| Item Number | Component | Description |
| 1 | WS2812LED | RGB system status indicator |
| 2 | Stamp Cut | Solderable pinout |
| 3 | Reset Button | Press to reset the main program |
| 4 | Type-C Port | Burning firmware & programming |
| 5 | User Buttont | Custom function |
| 6 | Pin Header | Connectable with various shield |
| 7 | Orientation Mark | Ensure proper installation alignmen |
|
Product ID
|
Model
|
Type-C Input Voltage | VBAT Input Voltage | Antenna Type | Weight | Size |
|
XA003
|
Core A11 | DC 5V | 3.7V~12.6V | PCB Antenna | 6g | 27*22mm |
Can be combined with the Official R/C Combo Kits
