Name: Motion-Activated Sound and Light Props Kit
Brand: Bambu Lab
SKU: B-ZC007
Price: 120.0 USD
Availability: InStock

Documentation

3D Model Instruction Manual

Overview

The Motion-Activated Sound and Light Props Kit is a multifunctional toolkit specifically designed for handheld props, combining lighting, sound, and motion-sensing controls to deliver a personalized, immersive experience. Featuring high-brightness LED strips paired with diffused pearl cotton, it offers smooth and natural lighting effects. An integrated speaker cavity ensures clear audio quality, while the built-in IMU motion sensor captures real-time movements, triggering corresponding light and sound effects for actions like turning on/off, swinging, thrusting, or striking.

Unlike purely aesthetic prop sets that lack hardware, this kit is more than just a prop—it's your creative partner. It supports extensive customization across appearance, lighting effects, and sound effects, compatible with various prop forms such as Golden Staff, Double-Bladed Weapon, and Pixel Lightsaber. Leveraging 3D printing and professional design, it unlocks limitless possibilities for your imagination. With app connectivity, users can easily adjust light colors, flashing frequencies, and even upload custom sound and light effects, creating a one-of-a-kind, personalized prop with ease.

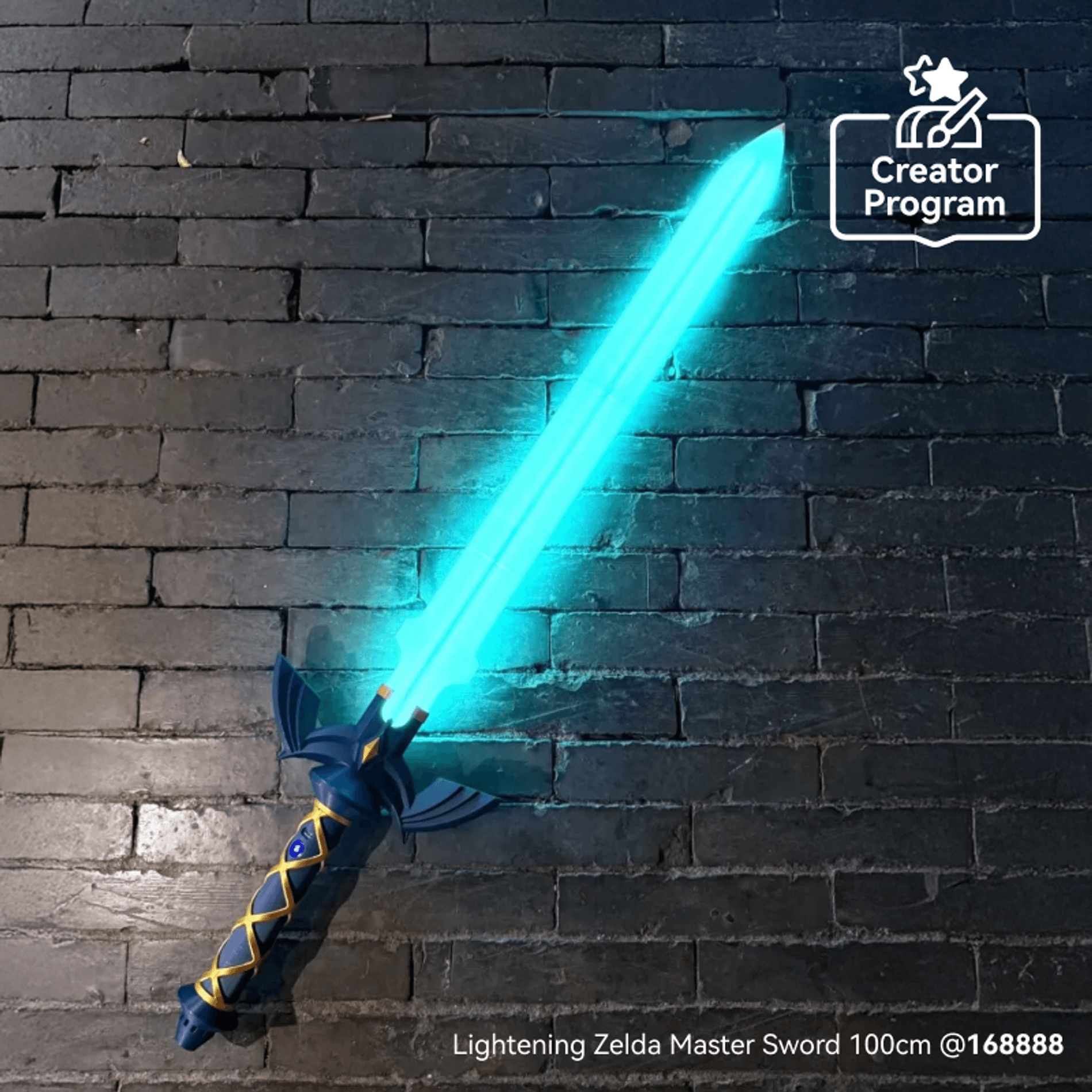

Creator Program: The Creator Program is a collaborative program between Bambu Lab and creators. Creators unleash their creativity to design 3D printing models, while Bambu Lab provides compatible hardware kits for those designs.

Models	Creators	Model Links
1:1 Ruyi Jingu Bang Wukong Staff Weapon	@DaDaland	1:1 Ruyi Jingu Bang Wukong Staff Weapon

Product Feature

Immersive Motion Interaction: Integrates motion sensors and sound systems to capture movements in real-time, triggering synchronized lighting and sound effects for a realistic, immersive experience.
Dynamic Pixel Lighting Effects: High-quality Pixel LED strips with independent point control, enabling smooth gradients, chasing lights, and other dynamic effects. Rich colors and seamless transitions make every movement stunning.
Optimized Sound Performance: Built-in speaker cavity enhances audio output, ensuring clear sound for an enhanced immersive experience.
Bluetooth Smart Control: Bluetooth connectivity enables seamless interaction with a smartphone app, allowing real-time adjustments of lighting and sound. Customizable lighting and sound effects can be set via the app and TF card.
Aluminum Alloy Core Shaft: Features an aluminum alloy core shaft with anodized matte finish, combining durability and a comfortable grip.

APP Operation

Android Users: Please scan the QR code to download the app.

iOS Users: Search for "Frocepark V2" in the App Store

Product Specification

Hardware

	Component	Description	Size	Wire Length
1	Speaker	Used for sound effects. Connects via the 2P cable to the mainboard.	23.8（φ）*12（h）mm	50 mm
2	Control panel	Includes 1 control power button, 1 USB-C charging and power interface, 4 connection ports for LED, buttons, and speakers.	411321mm	45 mm
3	Battery	Supports 18650 battery: 3.7V, 2600mAh capacity. Charging time: 50-60 minutes (depending on power consumption). Battery life: approximately 4-5 hours. Charges via USB-C, with a 5V/1A charging input. Note: does not support fast charging protocols.	18.5（φ）*68.5（h）mm	70 mm
4	Main Board (SNV4pro)	Equipped with a built-in 32G TF card. Displays various lighting and sound effects with an integrated motion sensor. Features two dedicated ports for accessory modules. Supports multiple power modes. Includes an 18650 lithium battery connector with internal overcharge and discharge protection.	70166.5mm	LED strip1：600 mm LED strip2: 750 mm Battery：30 mm
5	Set Screw(2PCS)	Used to secure the 3D-printed base inside the aluminum tube.	M3*12	/
6	Self Tapping Screw (5PCS)	Used to secure the main board and button board onto the 3D-printed PCB base.	BT2*5	/
7	Connection Part	/	35（φ）*30（h）mm	/
8	Round Threaded Brass Heat Insert Nut (2PCS)	Used to secure the 3D-printed base inside the aluminum tube.	M345	/

	Component	Description	Size	length
9	Light Diffusion Foam	Light-diffusing foam can be inserted into the LED strip, ensuring smooth and even light distribution.	29（φ）*440（h）mm	/
10	Pixel LED Strip light	The single side consists of 62 high-brightness LED beads, with a total of 124 beads on both sides, creating vibrant and dynamic pixel LED strip lighting effects. The strip is connected to the mainboard via a 3P connector.	435101mm	95 mm
11	Aluminum tube	/	35（φ）*600（h）mm	/
12	Aluminum tube with button and charging port	Equipped with a charging port, a button hole, and a reset hole, the tube houses a main board and battery.	35（φ）*600（h）mm	/

Software

Component	Description
APP	Connects to the device via Bluetooth, allowing users to adjust lighting and sound effects on their phone. Supports both Android and iOS systems.
Lighting Effects	Over 20 pre-installed lighting effects, supports custom lighting effects and allows users to design their own.
Sound Effects	Includes 27 sound effects and supports updating the sound library via an TF card to add more desired effects.
Motion Sensory	The motion sensor triggers lighting and sound effects based on movement characteristics, enhancing the immersive experience.

Considerations

When installing the batteries, ensure the correct polarity to avoid short circuits.
When connecting the LED strip and button board, be careful not to bend the wires excessively to prevent damage.
Make sure the connectors match the corresponding ports and avoid using excessive force to prevent damage to the interfaces.

Frequently Asked Questions

Charging indicaton light does not turn on.
Try replacing the charger. A 5V 2A power adapter is recommended. It is not recommended to use a fast charging power adapter.
Charging indicator light is on, but the device cannot be turned on.
Use a screwdriver to insert the reset hole and perform a reset operation to restart the system. Disassemble the aluminum tube, remove the internal structure, and press the reset button on the main board to restart. Ensure the battery connector is connected properly.
The device makes a sound when turned on, but the light strip does not light up.
Disassemble the aluminum tube, remove the internal structure, and check if the Pixel LED Strip light connections are normal.
The light strip lights up when turned on, but there is no sound.
Use the mobile phone app to connect to the device via Bluetooth, enter the control menu, check and adjust the volume, and confirm whether the device is muted. If the problem persists, disassemble the aluminum tube, remove the internal structure, and check if the speaker connections are normal.
There is sound when turned on, but it is distorted.
Disassemble the aluminum tube, remove the internal structure, and check if the speaker diaphragm is damaged. If you have replaced the sound effect file, ensure that the audio file format and audio level are correct (44.1KHz 16-bit mono wav).
Cannot turn on the device.
Use a screwdriver to insert the reset hole and try to restart the system. If ineffective, disassemble the aluminum tube, remove the internal structure, and press the reset button on the main board to restart.
Check if the battery connector is connected properly. Ensure the TF card is inserted correctly. If the above steps do not solve the problem, try updating the firmware. Please contact us to obtain the latest firmware package and flashing tutorial.

In the box

Item Number	Item Name	Quantity
1	Main board	1
2	Control panel	1
3	Speaker	1
4	Pixel LED Strip light	2
5	Light Diffusion Foam	2
6	Battery	1
7	Aluminum tube with button and charging port	1
8	Aluminum tube	1
9	Connection Part	1
10	M3x12 Set Screw	2
11	M3x4x5 Round Threaded Brass Heat-Insert Nut	2
12	BT2x5 SHCS Self Tapping Screw	5
